Roland V-1SDI – Portable 3G-SDI Video Switcher

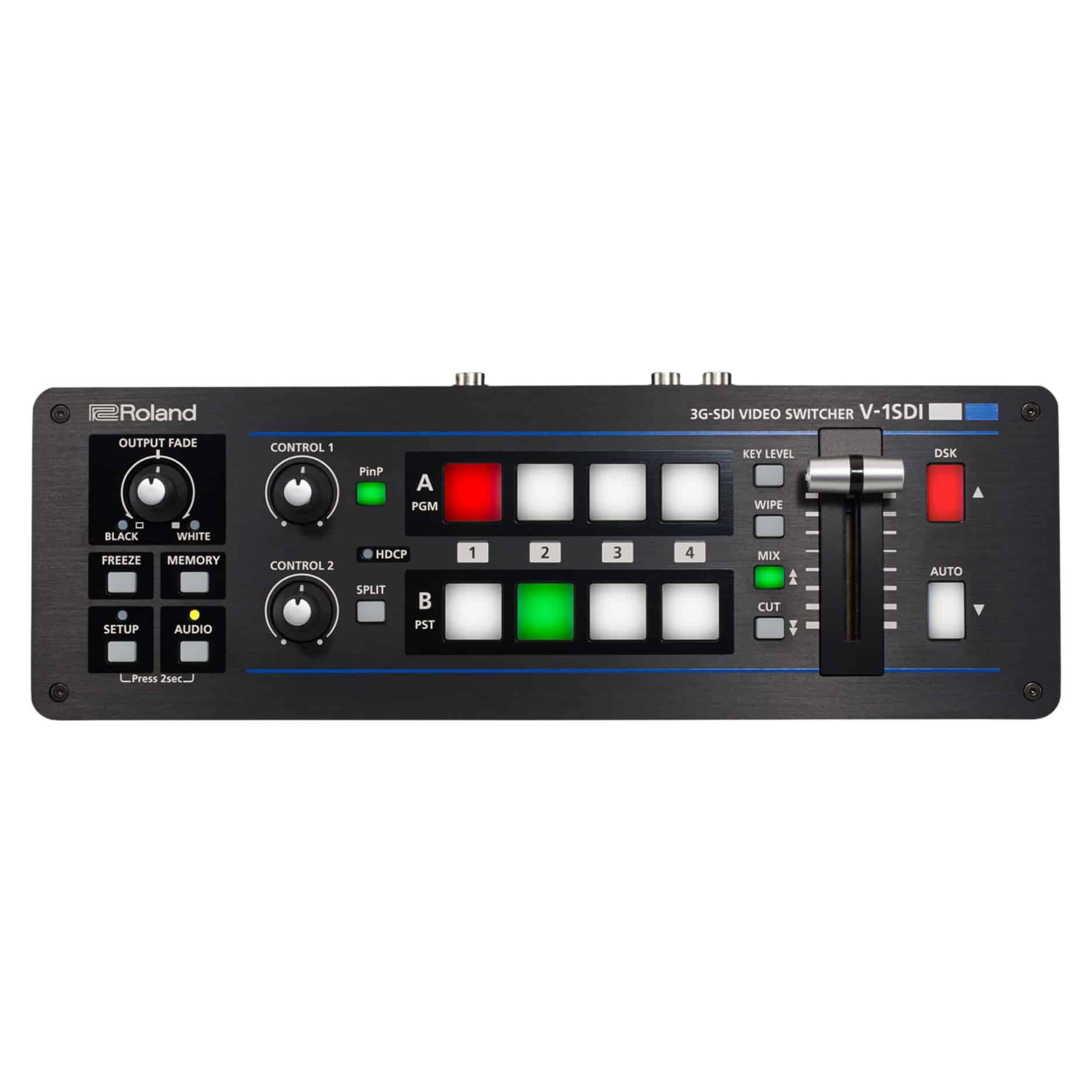

The Roland V-1SDI is a compact, flexible, and professional video switcher designed for webcasting, videography, installations, and live events. With support for both 3G-SDI and HDMI sources, it’s easy to connect cameras, smartphones, computers, and media players, delivering seamless switching and pro-quality results in any setup. Its intuitive hardware interface, complete with a T-bar and backlit buttons, makes it ideal for operators of all skill levels.
System Program Version 1.5 Update
The free Ver.1.5 update adds powerful new capabilities:
- Capture still images directly from input video (channel 4)
- Send still images via V-1SDI RCS on PC/Mac
- PinP size options expanded to 1/3, in addition to 1/2 and 1/4
Main Features
- Supports SDI and HDMI cameras, smartphones, tablets, and PCs
- Compact, portable design with intuitive hardware controls
- Supports Full HD 1080p resolution
- 3 x 3G-SDI and 2 x HDMI inputs
- 2 x 3G-SDI and 1 x HDMI outputs
- Quad input multi-viewer with source labeling and audio metering
- Composition effects: DSK, picture-in-picture, chroma key, luma key
- 14-channel audio mixer (HDMI, SDI, analog) with EQ and effects
- RS-232 control for fixed installations
- Software control via V-1SDI RCS application for Mac/PC
Applications
- Webcasting / Videography: Create professional streams and recordings with ease using SDI cameras and HDMI sources.
- Installations: Ideal for permanent setups thanks to long-distance SDI support and RS-232 control integration.
- Live Events: Compact and portable, the V-1SDI is built for quick setup and reliable switching in any venue size.
Specifications
- # of Sources: 4
- # of Outputs: 2
- Video Inputs: 3G-SDI, HDMI
- Video Outputs: 3G-SDI, HDMI, RJ-45 (IP), SDI
- Supported Resolution: Up to Full HD 1080p
- Features: Frame Sync/TBC, Multiviewer, T-Bar
- Special Effects: Chroma Key, Luma Key, Picture-in-Picture (PIP)
- Audio Inputs: 3.5mm mini jack, HDMI Embedded, SDI Embedded, Unbalanced RCA
- Audio Outputs: 3.5mm mini jack, HDMI Embedded, SDI Embedded, Unbalanced RCA
- Audio Mixer: 14 channels with EQ and processing
- Control: Buttons, T-Bar, RS-232, PC/Mac software
- Form Factor: Compact/Desktop (V-Series)
- HDCP: Compliant
- EDID Emulator: Built-in
- Power: AC adaptor (PSB-7U) or battery operation
With the Roland V-1SDI, you get a professional 4-channel SDI/HDMI switcher that combines portability, reliability, and advanced features—perfect for webcasting, live events, video production, and fixed installations.
