Description

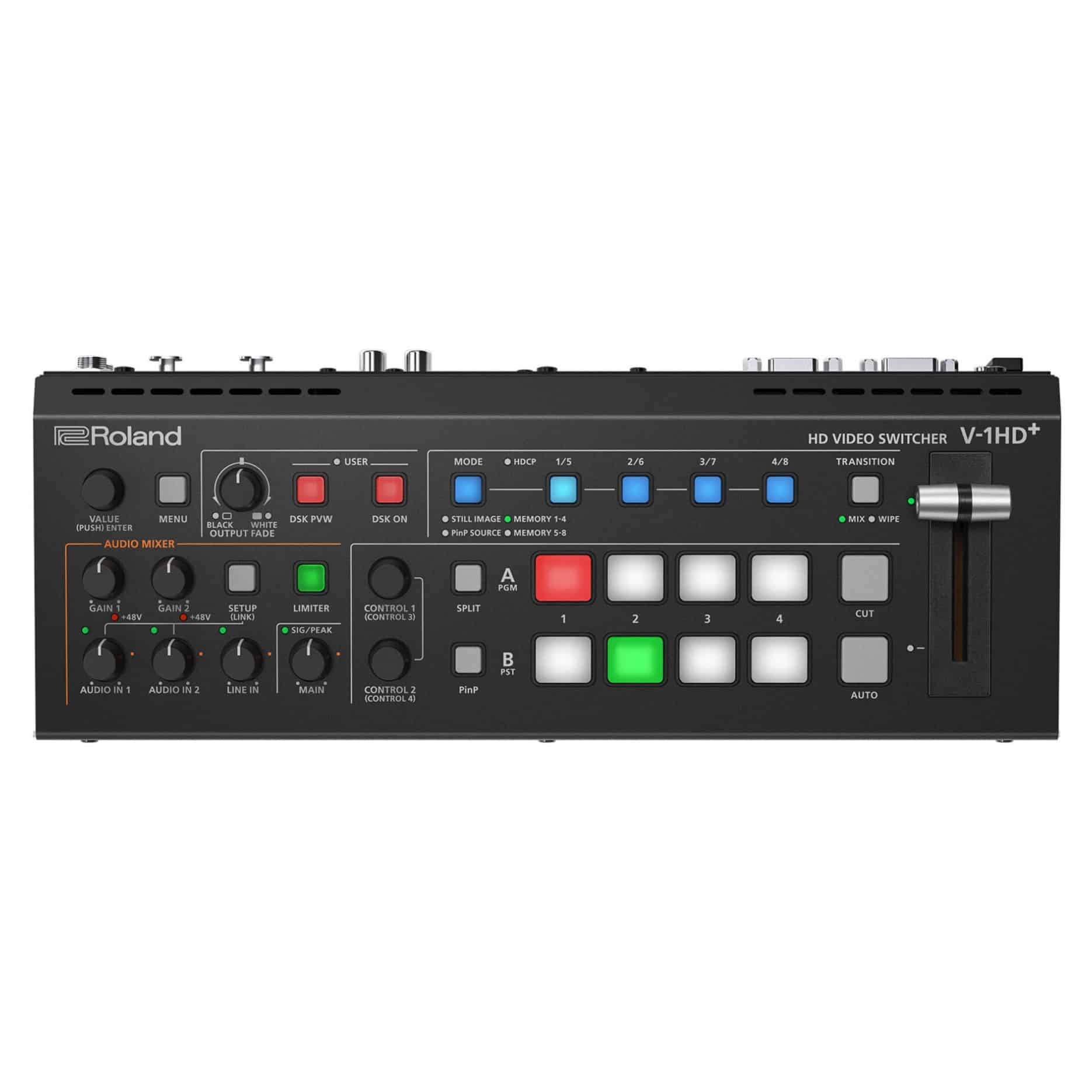

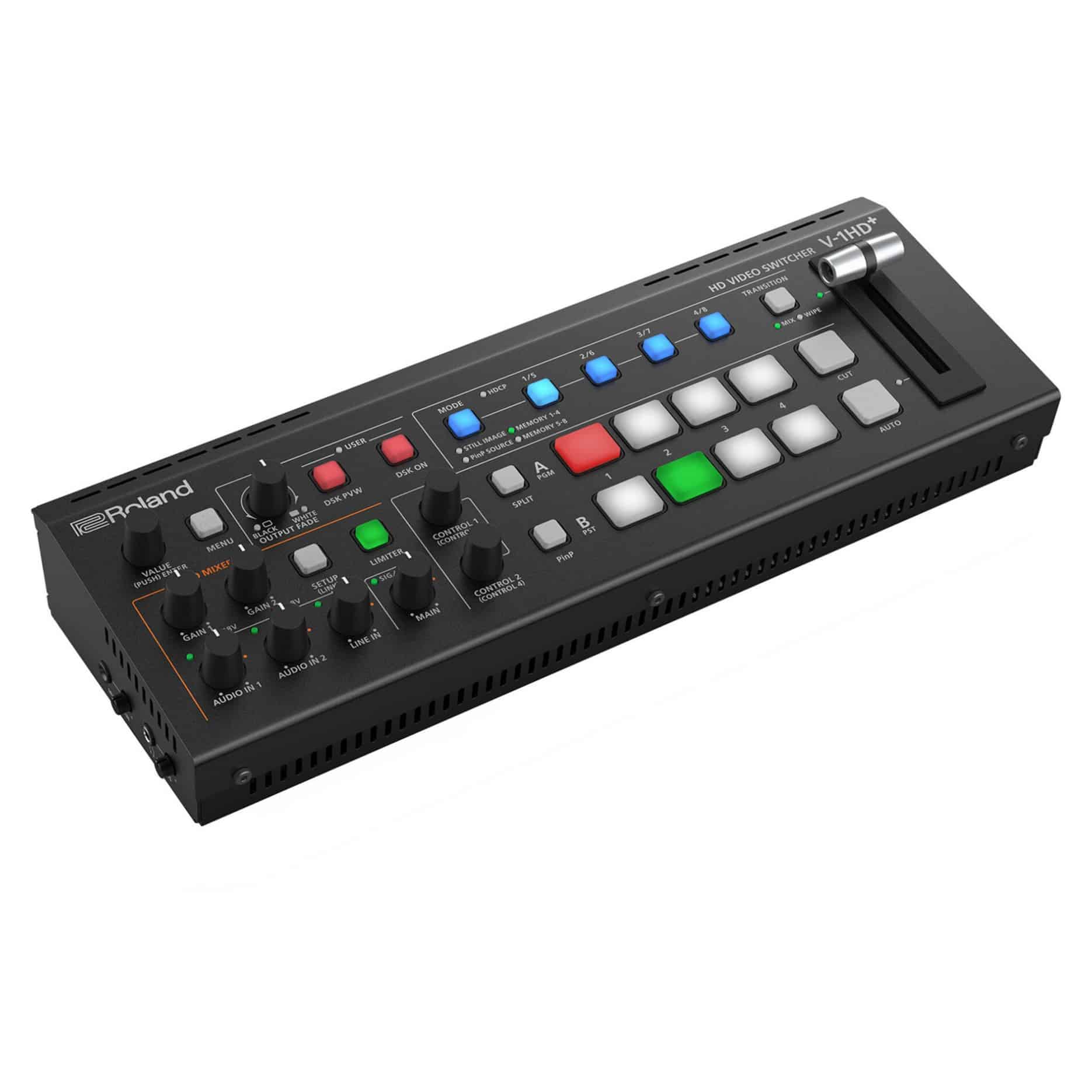

Roland V-1HD+ – Switch, Mix, and Create Like a Pro
The Roland V-1HD+ is the ultimate compact A/V switching solution for content creators, livestreamers, and event professionals. Designed for intuitive operation and built with Roland’s legendary reliability, it offers professional-grade performance in a portable form factor—perfect for any production setup where creativity and control matter.
The Plus Advantage
Upgrade your productions with the enhanced power of the V-1HD+. Whether for live events, studio streaming, or hybrid broadcasts, this standalone switcher and 14-channel audio mixer gives single operators everything they need for broadcast-quality results. Enjoy an easy-to-learn interface, fast setup, and all the tools to deliver engaging visual stories.
No-Compromise Video I/O
With four HDMI inputs and built-in frame rate conversion, the V-1HD+ allows seamless mixing of cameras, computers, tablets, and gaming consoles. When you encounter a difficult source, simply use Input 4—its onboard scaler automatically syncs and calibrates the image for perfect compatibility.
Flexible Outputs for Any Workflow
- Two independent HDMI outputs with selectable bus assignment
- Use one output for program streaming or recording, and the other as a preview or 10-window multiview display
- Ideal for live productions, content monitoring, or hybrid events
Creative Power, Simplified
The V-1HD+ features a four-layer effects and keying engine that makes your productions visually dynamic. Add graphics, lower thirds, logos, and picture-in-picture effects—all controlled via one-touch buttons and a tactile T-Bar fader for smooth transitions. Technology-assisted Auto Switching keeps your visuals flowing even during solo operation.
Professional Audio Control
- 14-channel digital audio mixer with EQ, compression, and effects
- Balanced XLR inputs for microphones, plus RCA and 3.5 mm line inputs
- Embedded audio support over HDMI for integrated A/V workflows
- Roland’s renowned studio-quality sound processing
Pro Operation Made Easy
Large backlit buttons and direct-access controls make it easy to manage transitions, keying, PiP, and effects—even in low-light environments. Quick-action buttons provide instant access to key functions like menu, transition type, DSK on/off, and effects control. Everything is designed for speed, reliability, and ease of use.
A Legacy of Success
Building on the legacy of the best-selling Roland V-1HD, the V-1HD+ adds deeper functionality, richer effects, and professional connectivity—while maintaining the simplicity and portability that made the original model a global favorite. It’s the perfect evolution for creators ready to take their workflow to the next level.
Specifications
- # of Sources: 4 HDMI
- # of Outputs: 2 HDMI (assignable)
- Video Inputs: HDMI with frame rate conversion and Input 4 scaler
- Video Outputs: 3G-SDI, HDMI
- Supported Video Modes: Up to Full HD 1080p
- Audio Inputs: 3.5 mm mini jack, XLR balanced, HDMI embedded, RCA unbalanced
- Audio Outputs: 3.5 mm mini jack, HDMI embedded, RCA unbalanced
- Audio Mixer: 14 channels with effects and EQ
- Control: Buttons, Jog dial, T-Bar fader
- Special Effects: Chroma Key, Luma Key, Downstream Keyer (DSK), Picture-in-Picture (PiP)
- Features: Frame Sync/TBC, Auto Switching, Memory Presets
- Form Factor: Compact Control Panel (V-Series)
- Dimensions: 313 mm (W) × 59 mm (H) × 102 mm (D)
- Color: Black
The Roland V-1HD+ gives you the creative freedom, control, and sound quality to handle any livestream, event, or hybrid production with professional polish—all in a portable, reliable package.
